Description

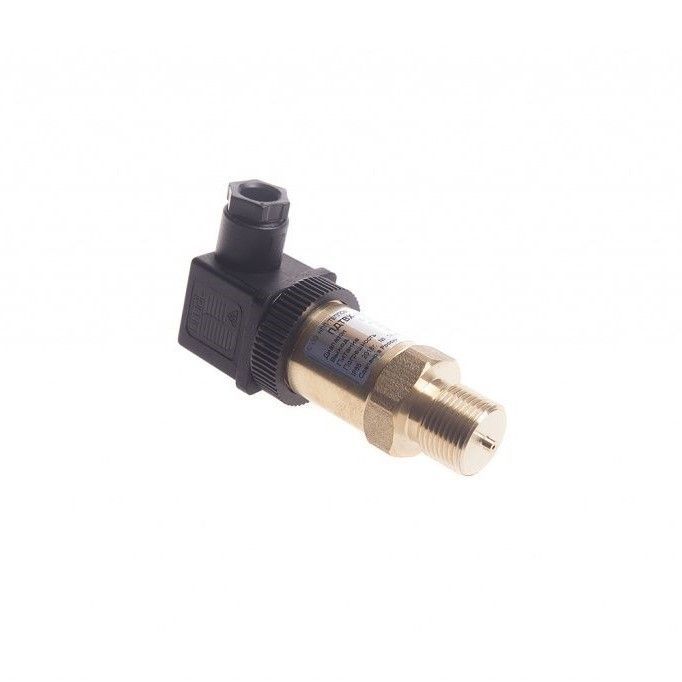

Designed to measure the pressure of non-aggressive media and continuously convert pressure into unified signals for current and voltage.

  • Wide range of models
  • IP68 version (optional)
  • Possibility of ordering radiators for installation on superheated steam
  • Current output 4…20 A
  • Voltage output 0.4 - 2.0 V
Upper measurement limits, Mpa 0,1; 0,25; 0,4; 0,6; 1,0; 1,6; 2,5; 4,0; 6,0; 10,0; 16,0; 25,0; 40,0
Limits of permissible basic error, % 0,25; 0,5; 1,0
Output signal range
DC current, mA 4...20
DC voltage, V, (for self-powered systems) 4...2,0
Degree of protection IP65, IР68
Medium to be measured Water, steam, oil
Temperature range of the measured medium, °C 45...+110 (if this temperature is exceeded, a heatsink should be used)
Electrical power supply of converters, V DC 9...36; 3.1...6 (for version with output 0.4-2 V)
Ambient temperature, °C -40...+80
Overall dimensions of the pressure transducer
Diameter, mm, no more 38
Length, mm, no more 150
Wire connection, DIN connector 43650C
Joining the system M20 x 1.5 or 1/2"
Warranty period, months 36
